Membrane-Based WFI System
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | CHONGYANG |
| إصدار الشهادات: | ISO ,CE |
| رقم الموديل: | CY-WFI-300 لتر / ساعة |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | وفقا لمعيار التصدير |
| وقت التسليم: | مع 30-40 يوم |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| القدرة على العرض: | 100 مجموعة / شهر |
|
معلومات تفصيلية |
|||
| مادة: | SS316L | مراحل: | مزدوج RO + EDI + الترشيح الفائق |
|---|---|---|---|
| صمام: | صمام الحجاب الحاجز | مضخة: | جروندفوس ، CNP |
| الموصلية: | 1.3μS / سم | طلب مياه العلف: | نظام تنقية المياه |
| اسم المنتج: | الترشيح الفائق للمياه WFI | معيار: | FDA ، USP ، cGMP ، GMP |
| مواد خط الأنابيب: | BPE ، SS | سعة: | 100 لتر / ساعة - 10000 لتر / ساعة |
منتوج وصف

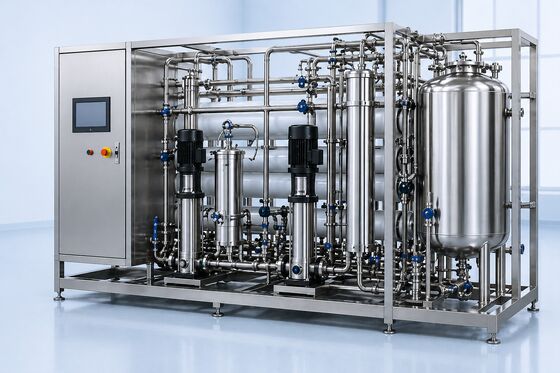

Membrane-Based WFI System
Product Overview: The Membrane-Based WFI System is designed for pharma Water for Injection production using double-pass RO, EDI and ultrafiltration technology. It provides stable water quality, lower energy consumption and GMP-compliant operation for modern pharmaceutical manufacturing.
Applications
This system is widely used in pharma manufacturing, biotechnology production, sterile preparation, laboratory research and medical industries where high-purity Water for Injection is required for injection, cleaning and process water applications.

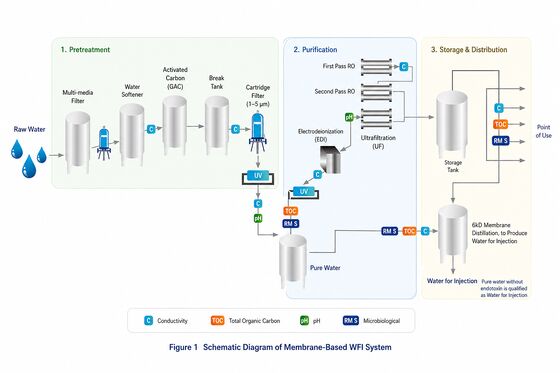

Process Flow
Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 100–10,000 L/H |
| Conductivity | ≤1.1 µS/cm @25°C |
| TOC | ≤500 ppb |
| Endotoxin | ≤0.25 EU/ml |
| Bacteria | <10 CFU/100 ml |
| Material | SS316L, internal Ra <0.4 μm |
| Control System | PLC + HMI, or Schneider optional |
Configuration List

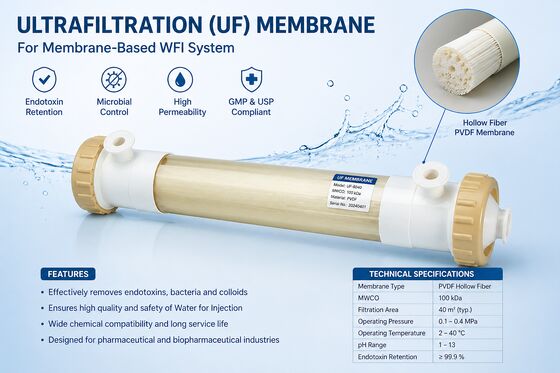

The system includes multimedia filter, activated carbon filter, water softener, double-pass RO membranes, EDI module, ultrafiltration membrane for endotoxin removal, sanitary pumps, UV sterilizer, ozone system, SS316L storage tank and automatic PLC control system.
Project Cases
Our membrane-based WFI systems have been applied in pharmaceutical factories in Southeast Asia, the Middle East and Europe, helping customers achieve stable WFI production, GMP validation and continuous operation.
Certifications & Standards
The system is designed according to GMP, FDA, USP, EP and WHO requirements. Optional IQ/OQ/PQ validation support and complete documentation can be provided for audit and compliance needs.
FAQ
Q: Is membrane-based WFI acceptable under GMP?
A: Yes. It can be accepted with proper system design, validation and water quality control strategy.
Q: What are the advantages compared with distillation?
A: Lower energy consumption, compact design, faster startup and flexible operation.
Q: Can the system be customized?
A: Yes. Capacity, materials, control system and validation documents can be customized.
FAQ:
1.Question: Which process do you adopt ?
Answer:Usually we will be according to what your raw water quality and your requested water requirement .
2. Question:Can you customize For me?
Answer :Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.Question: What standards is the Pharmaceutical Purified Water System ?
Answer: Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.Question:How long is the Delivery time ?
Answer: Usually the delivery time is 35 -40 Days .
