Automated Solution Preparation System 1500L with SS316L Tank (Full Automatic Control, CIP/SIP System)
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | CHONGYANG |
| إصدار الشهادات: | ISO,CE |
| رقم الموديل: | سي واي-SPS-500L |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | صندوق خشبي قياسي التصدير |
| وقت التسليم: | 15 يوما |
| شروط الدفع: | تي / تي، خطاب الاعتماد |
| القدرة على العرض: | 100 مجموعة / شهر |
|
معلومات تفصيلية |
|||
| سعة: | 300 لتر / 500 لتر / 1000 لتر / 2000 لتر / 3000 لتر / مخصص | مادة: | SS316L (أجزاء الاتصال بالمنتج)، SS304 (الإطار) |
|---|---|---|---|
| الانتهاء من السطح: | Ra داخلي ≥0.4μm، خارجي غير لامع/مصقول | نظام التحكم: | التحكم الآلي PLC مع شاشة تعمل باللمس (Siemens/Schneider اختياري) |
| وظيفة: | سترة الخلط والتدفئة والتبريد ونظام التنظيف CIP/SIP | طلب: | فارما / بيوفارما / مستحضرات التجميل / صناعة المواد الغذائية |
منتوج وصف
Automated Solution Preparation System 1500L with SS316L Tank (Full Automatic Control, CIP/SIP System)
1. Product Name
Automated Solution Preparation System 1500L with SS316L Tank (Full Automatic Control, CIP/SIP System)
2. Product Overview
The 1500L Automated Solution Preparation System is designed for large-scale hygienic liquid mixing and preparation. Equipped with full automatic PLC control and integrated CIP/SIP capabilities, the system ensures consistent product quality, repeatable operation, and efficient cleaning/sterilization cycles.
Constructed with SS316L contact parts and a sanitary design, it meets high cleanliness standards and is suitable for continuous and batch processing applications.
3. Applications
- Biotech liquid preparation
- Cosmetic production lines
- Food & beverage processing
- Chemical liquid blending
- High-standard industrial liquid systems
4. Process Flow Diagram
→ Heating/Cooling Jacket → Circulation Loop → Filtration Unit
→ CIP/SIP Cleaning → Storage / Transfer
Process Description:
Water and materials are introduced into the mixing tank through automated dosing. The agitator ensures homogeneous mixing. Temperature control is achieved via the jacket system. The solution is circulated, filtered, and transferred. CIP/SIP systems ensure internal cleanliness and sterilization without dismantling.
5. Key Features
- SS316L contact surfaces with hygienic design
- Full automatic PLC control with touch screen interface
- Integrated CIP & SIP system for cleaning and sterilization
- Optional heating and cooling jacket
- High-efficiency mixing with variable speed agitator
- Closed system design to reduce contamination risk
- Skid-mounted compact structure for easy installation
6. Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 1500 L |
| Contact Material | SS316L |
| External Material | SS304 |
| Surface Finish | ≤0.8 μm (≤0.6 / ≤0.4 μm optional) |

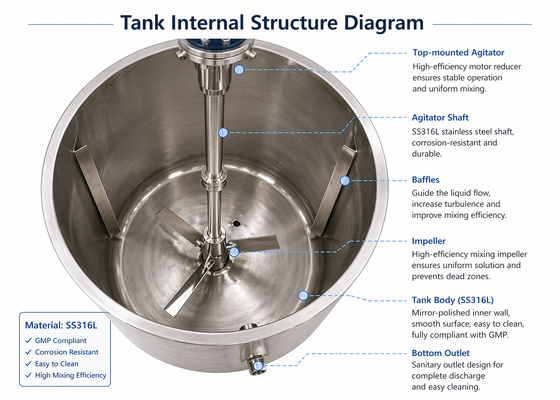

| Mixing Type | Top-mounted agitator |
| Mixing Speed | 0–60 rpm (adjustable) |
| Heating/Cooling | Jacketed tank |
| Control System | PLC + HMI (full automatic) |
| Cleaning System | CIP + SIP integrated |
| Working Pressure | 0–0.3 MPa |
| Design Temperature | -10°C to 120°C |
| Power Supply | 220V / 380V, 50/60 Hz |
| Installation | Skid-mounted |
| Design Standard | GMP-oriented, ISO |
7. Configuration List
| Component | Description |
|---|---|
| Mixing Tank | 1500L SS316L vessel with manway |
| Agitator | Top-mounted variable speed |
| Jacket System | Heating/cooling jacket |
| Control Panel | PLC with touch screen |
| CIP System | Automatic cleaning unit |
| SIP System | Steam sterilization system |
| Valves | Sanitary diaphragm valves |
| Piping | SS316L hygienic piping |
| Pump | Circulation/transfer pump |
| Filter Unit | Cartridge/membrane filtration |
| Sensors | Temperature, pressure, level |
| Platform | Stainless steel skid frame |
8. Project Cases
Case 1 – Southeast Asia Industrial Facility
A 1500L automated system improved production efficiency and reduced manual operation through PLC control and automated cleaning cycles.
Case 2 – Middle East Cosmetic Plant
Integrated CIP/SIP system ensured high hygiene levels and reduced downtime between batches.
9. Certifications & Standards
- GMP-oriented design principles
- ISO 9001 Quality Management
- Hygienic piping and sanitary fittings
- Optional compliance with FDA / WHO guidelines
10. FAQ
Q1: Is the system fully automatic?
Yes, it is equipped with PLC control and touch screen operation.
Q2: What is the advantage of CIP/SIP?
It enables automatic cleaning and sterilization without dismantling, saving time and ensuring hygiene.
Q3: Can the system be customized?
Yes, capacity, configuration, and automation level can be tailored.
Q4: Does it support temperature control?
Yes, jacket heating and cooling options are available.
Q5: Is installation support available?
Yes, global installation and commissioning services are provided.
11. CTA (Call To Action)
Looking for a high-capacity automated solution preparation system?
Contact us for a customized design and quotation.
